This wiki is intended to provide a resource for setting up a resilient Red Team infrastructure. It was made to complement Steve Borosh (@424f424f) and Jeff Dimmock's (@bluscreenofjeff) BSides NoVa 2017 talk "Doomsday Preppers: Fortifying Your Red Team Infrastructure" (slides). If you have an addition you'd like to make, please submit a Pull Request or file an issue on the repo.

THANK YOU to all of the authors of the content referenced in this wiki and to all who contributed!

Table of Contents

Design Considerations

Functional Segregation

When designing a red team infrastructure that needs to stand up to an active response or last for a long-term engagement (weeks, months, years), it’s important to segregate each asset based on function. This provides resilience and agility against the Blue Team when campaign assets start getting detected. For example, if an assessment’s phishing email is identified, the Red Team would only need to create a new SMTP server and payload hosting server, rather than a whole team server setup.

Consider segregating these functions on different assets:

Each of these functions will likely be required for each social engineering campaign. Since active incident response is typical in a Red Team assessment, a new set of infrastructure should be implemented for each campaign.

Using Redirectors

To further resilience and concealment, every back-end asset (i.e. team server) should have a redirector placed in front of it. The goal is to always have a host between our target and our backend servers. Setting up the infrastructure in this manner makes rolling fresh infrastructure much quicker and easier - no need to stand up a new team server, migrate sessions, and reconnect non-burned assets on the backend.

Common redirector types:

Each redirector type has multiple implementation options that best fit different scenarios. These options are discussed in further detail in the Redirectors section of the wiki. Redirectors can be VPS hosts, dedicated servers, or even apps running on a Platform-as-a-Service instance.

Sample Design

Here is a sample design, keeping functional segregation and redirector usage in mind:

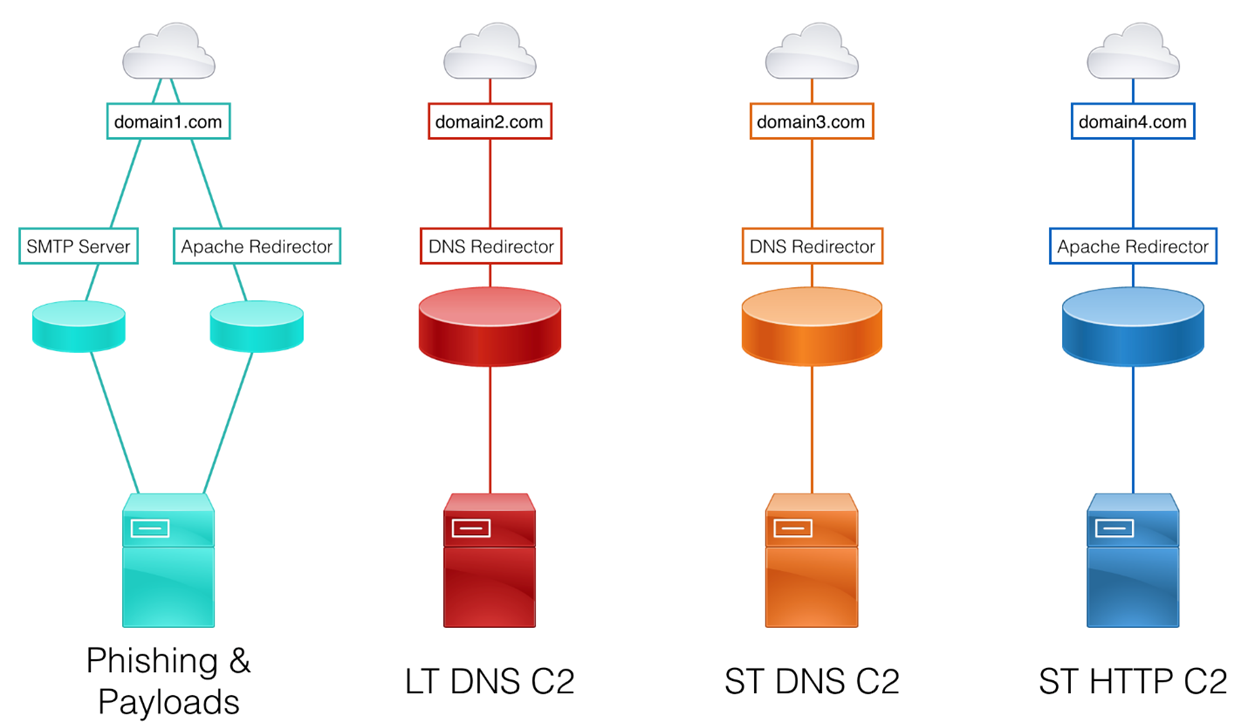

Sample Infrastructure Setup

Further Resources



Domains

Perceived domain reputation will vary greatly depending on the products your target is using, as well as their configuration. As such, choosing a domain that will work on your target is not an exact science. Open-source intelligence gathering (OSINT) will be critical in helping make a best guess at the state of controls and which resources to check domains against. Luckily, online advertisers face the same problems and have created some solutions we can leverage.

expireddomains.net is a search engine for recently expired or dropped domains. It provides search and advanced filtering, such as age of expiration, number of backlinks, number of Archive.org snapshots, SimilarWeb score. Using the site, we can register pre-used domains, which will come with domain age, that look similar to our target, look similar to our impersonation, or simply are likely to blend in on our target’s network.

expireddomains.net

When choosing a domain for C2 or data exfiltration, consider choosing a domain categorized as Finance or Healthcare. Many organizations will not perform SSL middling on those categories due to the possibility of legal or data sensitivity issues. It is also important to ensure your chosen domain is not associated with any previous malware or phishing campaigns.

The tool CatMyFish by Charles Hamilton(@MrUn1k0d3r) automates searches and web categorization checking with expireddomains.net and BlueCoat. It can be modified to apply more filters to searches or even perform long term monitoring of assets you register.

Another tool, DomainHunter by Joe Vest (@joevest) & Andrew Chiles (@andrewchiles), returns BlueCoat/WebPulse, IBM X-Force, and Cisco Talos categorization, domain age, alternate available TLDs, Archive.org links, and an HTML report. Additionally, it performs checks for use in known malware and phishing campaigns using Malwaredomains.com and MXToolBox. This tool also includes OCR support for bypassing the BlueCoat/WebPulse captchas. Check out the blog post about the tool's initial release for more details.

Yet another tool, AIRMASTER by Max Harley (@Max_68) uses expireddomains.net and Bluecoat to find categorized domains. This tool uses OCR to bypass the BlueCoat captcha, increasing the search speed.

If a previously registered domain isn't available or you would prefer a self-registered domain, it's possible to categorize domains yourself. Using the direct links below or a tool like Chameleon by Dominic Chell (@domchell). Most categorization products will overlook redirects or cloned content when determining the domain's categorization. For more information about Chameleon usage, check out Dominic's post Categorization is not a security boundary.

Finally, make sure your DNS settings have propagated correctly.

Categorization and Blacklist Checking Resources

Phishing Setup

Easy Web-Based Phishing

The words easy and phishing never really seem to go together. Setting up a proper phishing infrastructure can be a real pain. The following tutorial will provide you with the knowledge and tools to quickly setup a phishing server that passes "most" spam filters to-date and provides you with a RoundCube interface for an easy phishing experience including two-way communications with your target. There are many setups and posts out there regarding phishing. This is just one method.

Once you have a domain that passes the proper checks listed in the previous section and have your phishing server spun-up, you'll need to create a couple "A" records for your domain as pictured.

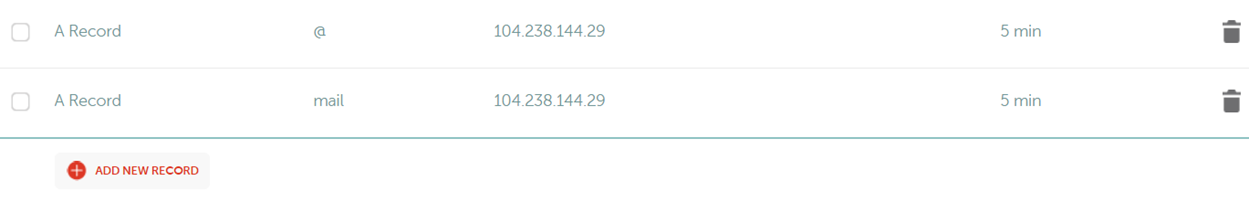

DNS Setup

Next, ssh into your phishing server and make sure you have a proper FQDN hostname listed in your /etc/hosts. Example "127.0.0.1 email.yourphishingserver.com email localhost"

Now, you're going to install the web front-end to phish from in just a few easy steps. Start by downloading the latest "BETA" version of iRedMail onto your phishing server. Easy way is to right click the download button, copy the link address, use wget to download directly onto your phishing server. Next, untar it "tar -xvf iRedMail-0.9.8-beta2.tar.bz2". Navigate into the unpacked folder and make the iRedMail.sh script executable (chmod +x iRedMail.sh). Execute the script as root, follow the prompts, and you'll need to reboot to finish everything.

You'll want to make sure you have all the proper DNS records pointing to your mail server. (https://docs.iredmail.org/setup.dns.html). For DKIM, the new command should be "amavisd-new showkeys" to list your DKIM key.

For DMARC we can use (https://www.unlocktheinbox.com/dmarcwizard/) to generate our dmarc entry.

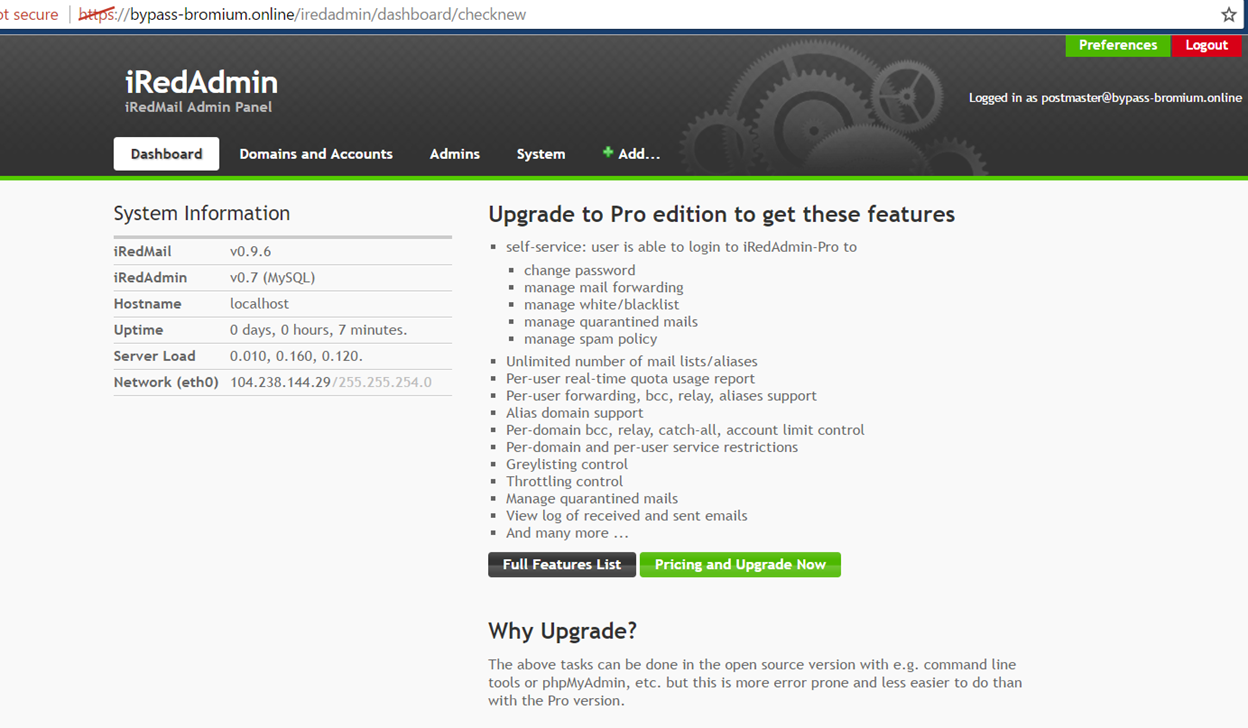

iRedMail Dashboard

Now, create a user to phish with.

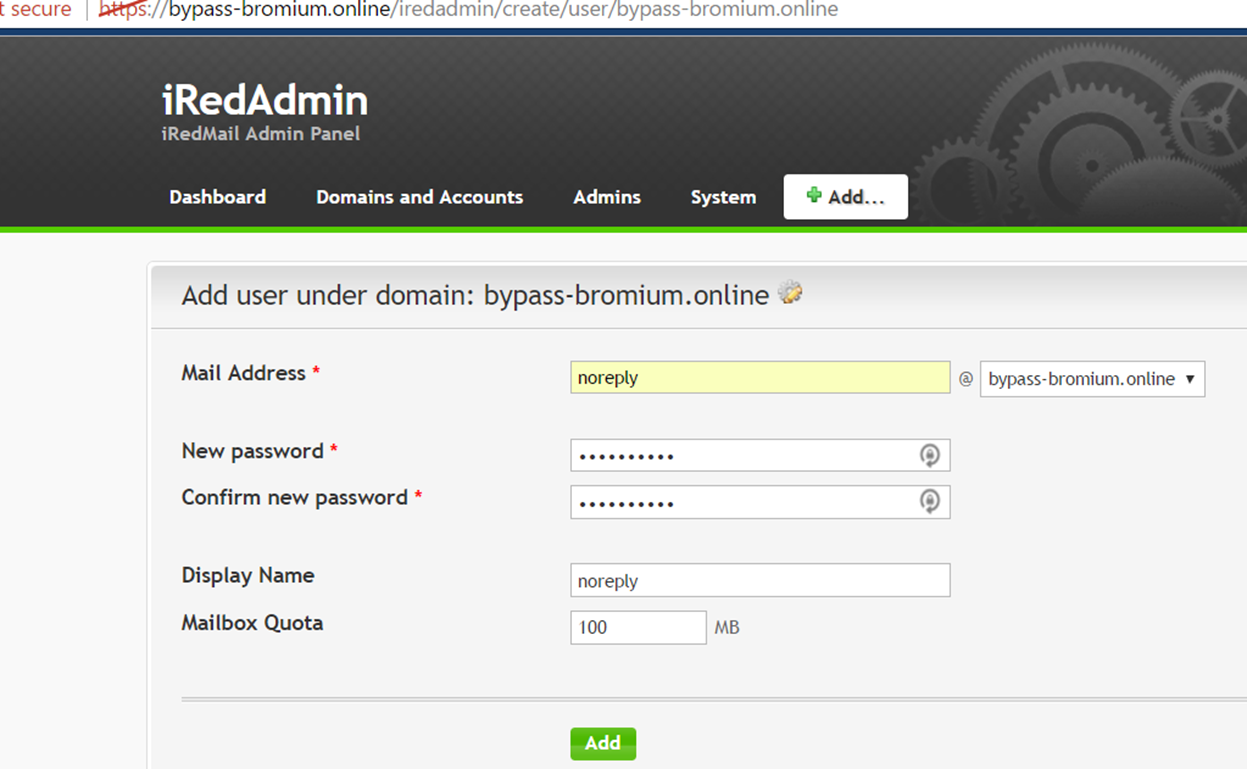

iRedMail Create User

Login to the RoundCube interface with your new user and phish responsibly!

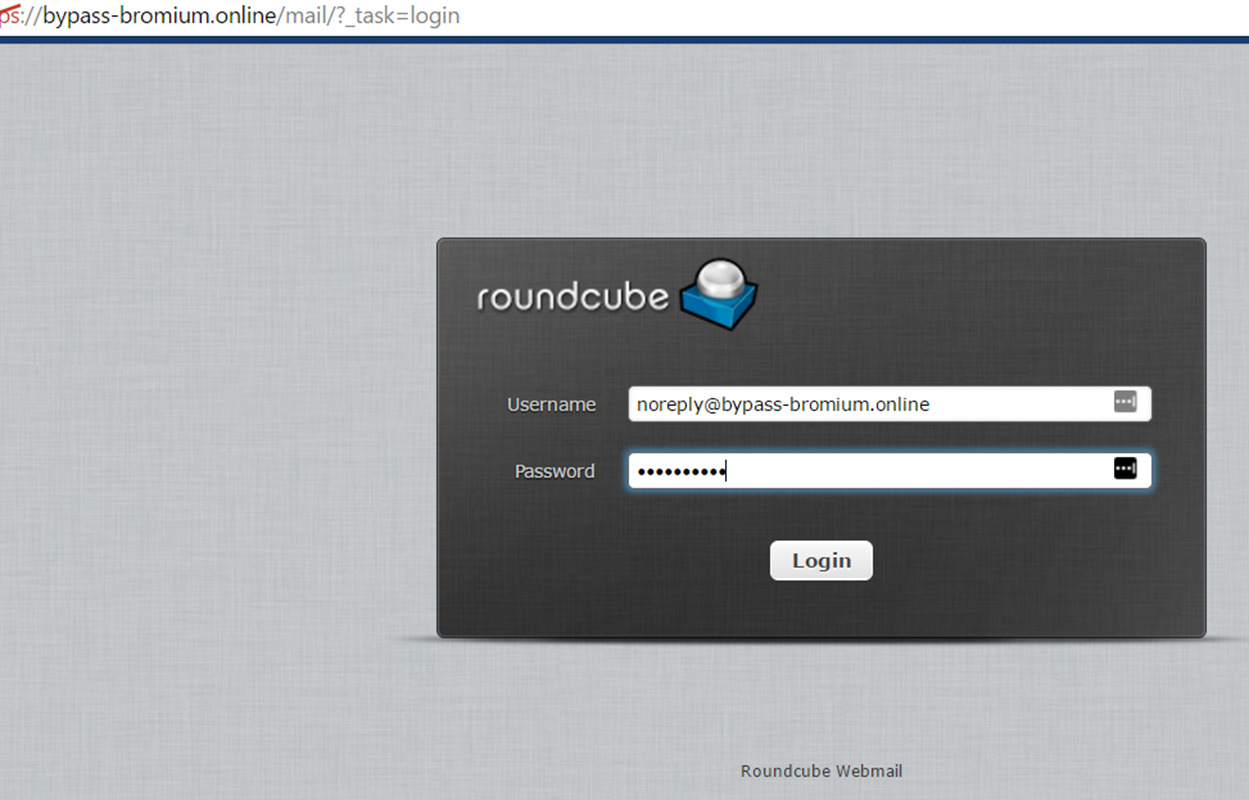

RoundCube Login

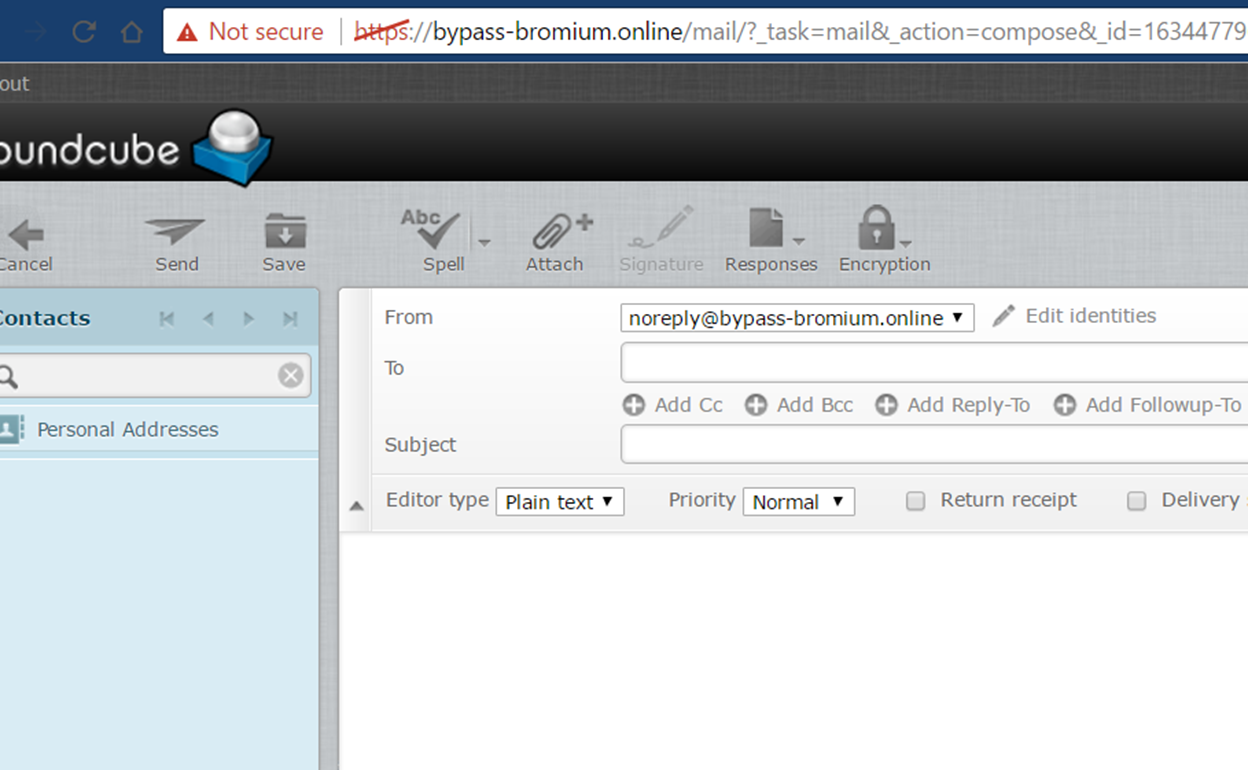

RoundCube Send Mail

Cobalt Strike Phishing

Cobalt Strike provides customizable spear phishing functionality to support pentest or red team email phishing. It supports templates in HTML and/or plaintext formats, attachments, a bounce back address, URL embedding, remote SMTP server usage, and per-message send delays. Another interesting feature is the ability to add a unique token to each user's embedded URL for click tracking.

Cobalt Strike Spearphishing Popup

For more detailed information, check out these resources:

Phishing Frameworks

Beyond rolling your own phishing setup or using a pentest or red teaming fraework, like Cobalt Strike, there are numerous tools and frameworks dedicated to email phishing. While this wiki won't go into detail about each framework, a few resources for each are collected below:

Gophish

Phishing Frenzy

The Social-Engineer Toolkit

FiercePhish (formerly FirePhish)

Redirectors

SMTP

“Redirector” may not be the best word to describe what we’re going to accomplish, but the goal is the same as with our other redirection. We want to remove any traces of our phishing origination from the final email headers and provide a buffer between the victim and our backend server. Ideally, the SMTP redirector will be quick to setup and easy to decommission.

There are two key actions we want to configure an SMTP redirector to perform:

Sendmail

Remove previous server headers

Add the following line to the end of /etc/mail/sendmail.mc:

define(`confRECEIVED_HEADER',`by $j ($v/$Z)$?r with $r$. id $i; $b')dnl

Add to the end of /etc/mail/access:

IP-to-Team-Server *TAB* RELAY

Phish-Domain *TAB* RELAY

Removing Sender’s IP Address From Email’s Received From Header

Removing Headers from Postfix setup

Configure a catch-all address

This will relay any email received to *@phishdomain.com to a chosen email address. This is highly useful to receive any responses or bounce-backs to a phishing email.

echo PHISH-DOMAIN >> /etc/mail/local-host-names

Add the following line right before //Mailer Definitions// (towards the end) of /etc/mail/sendmail.mc:

FEATURE(`virtusertable', `hash -o /etc/mail/virtusertable.db')dnl

Add the following line to the end of /etc/mail/virtusertable:

@phishdomain.com  external-relay-address

Note: The two fields should be tab-separated

Postfix

Postfix provides an easier alternative to sendmail with wider compatiblity. Postfix also offers full IMAP support with Dovecot. This allows testers to correspond in real-time with phishing targets who respond to the original message, rather than relying on the catch-all address and having to create a new message using your phishing tool.

A full guide to setting up a Postfix mail server for phishing is available in Julian Catrambone's (@n0pe_sled) post Mail Servers Made Easy.

DNS

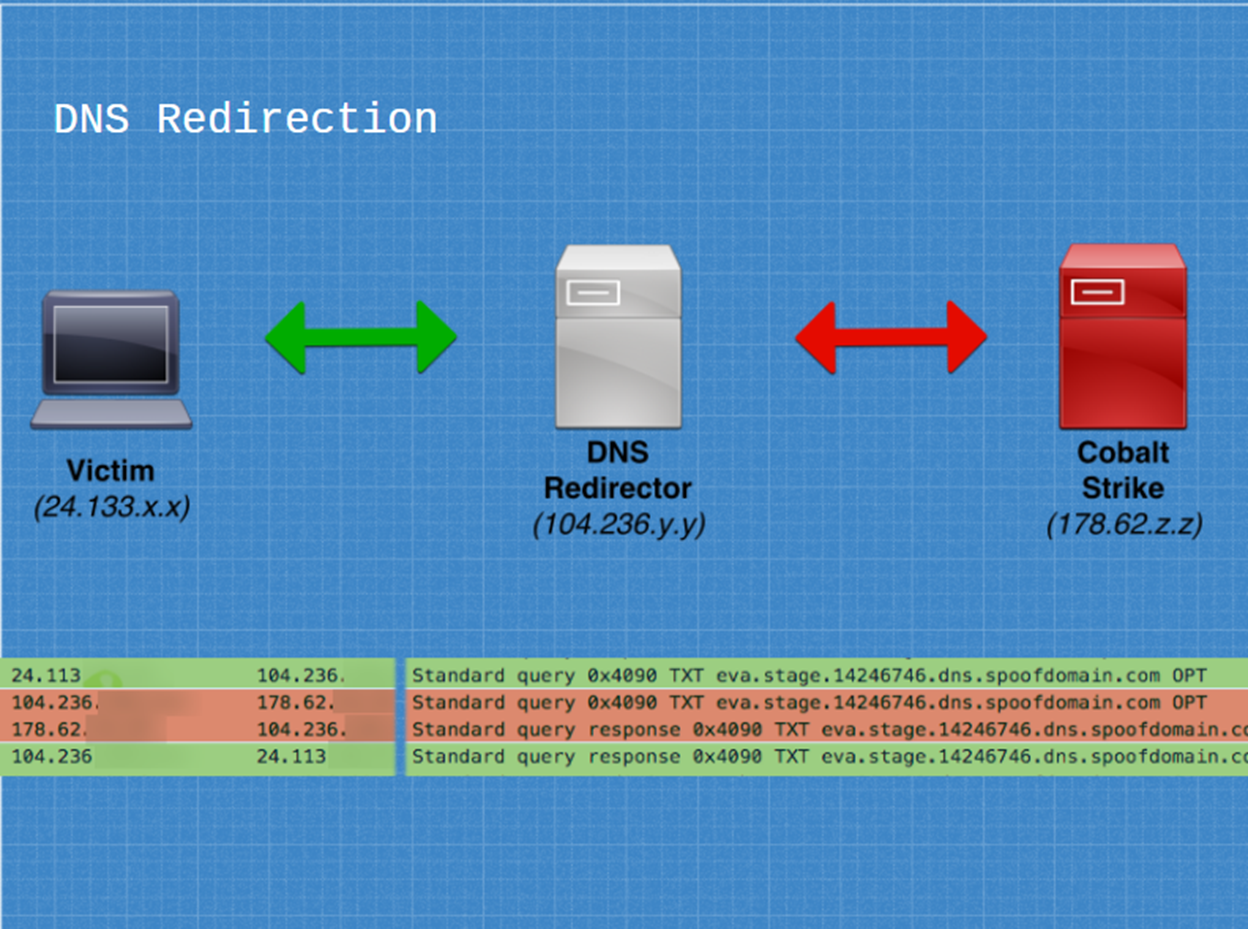

Sample DNS Redirector Setup

Note: When using C2 redirectors, a foreign listener should be configured on your post-exploitation framework to send staging traffic through the redirector domain. This will cause the compromised host to stage through the redirector like the C2 traffic itself.

socat for DNS

socat can be used to redirect incoming DNS packets on port 53 to our team server. While this method works, some user’s have reported staging issues with Cobalt Strike and or latency issues using this method. Edit 4/21/2017: The following socat command seems to work well thanks to testing from @xorrior:

socat udp4-recvfrom:53,reuseaddr,fork udp4-sendto:<IPADDRESS>; echo -ne

Redirecting Cobalt Strike DNS Beacons - Steve Borosh

iptables for DNS

iptables DNS forwarding rules have been found to work well with Cobalt Strike. There does not seem to be any of the issues that socat has handling this type of traffic.

An example DNS redirector rule-set is below.

iptables -I INPUT -p udp -m udp --dport 53 -j ACCEPT

iptables -t nat -A PREROUTING -p udp --dport 53 -j DNAT --to-destination <IP-GOES-HERE>:53

iptables -t nat -A POSTROUTING -j MASQUERADE

iptables -I FORWARD -j ACCEPT

iptables -P FORWARD ACCEPT

sysctl net.ipv4.ip_forward=1

Also, change "FORWARD" chain policy to "ACCEPT"

DNS redirection can also be done behind NAT

Some may have the requirement or need to host a c2 server on an internal network. Using a combination of IPTABLES, SOCAT, and reverse ssh tunnels, we can certainly achieve this in the following manner.

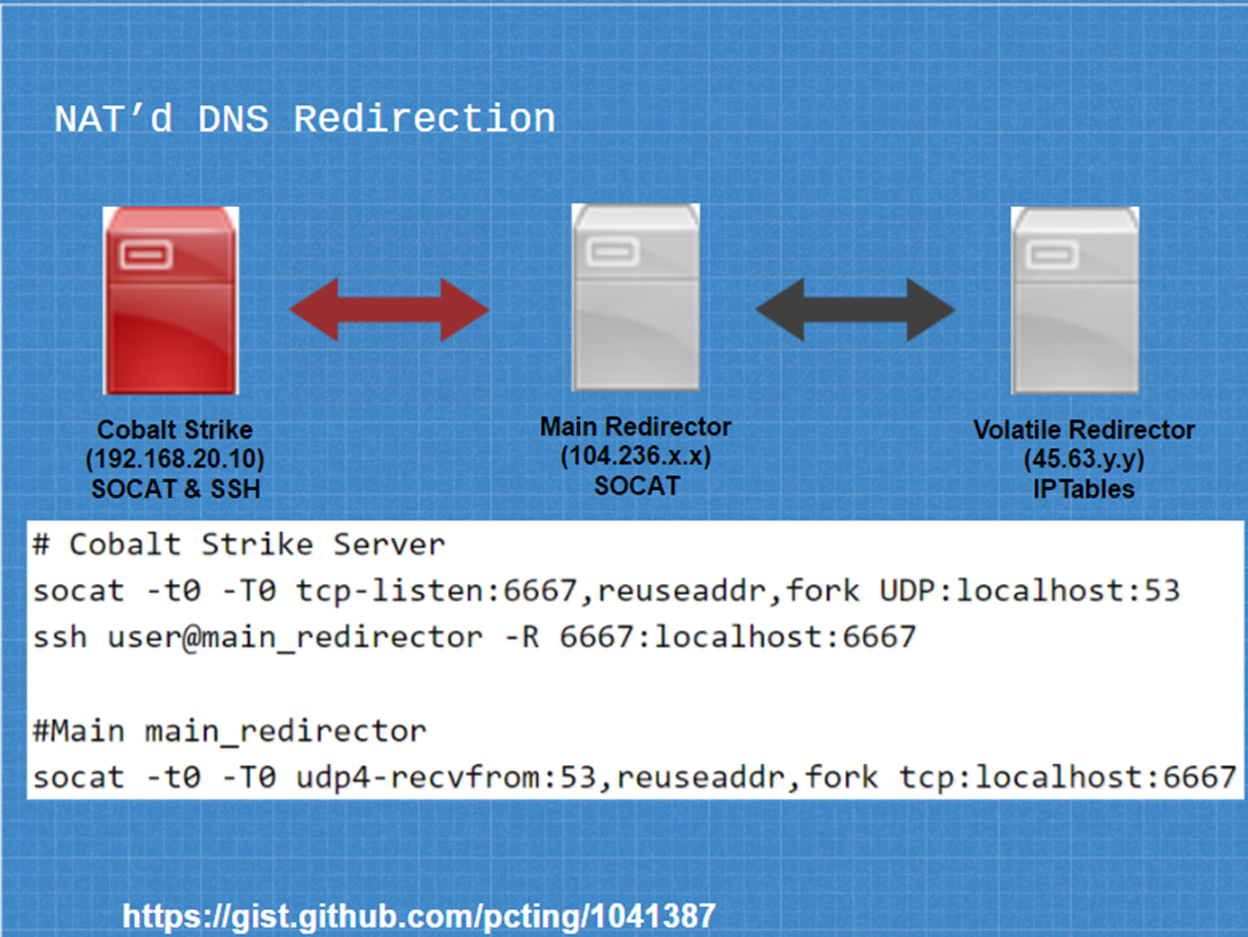

Sample DNS NAT Setup

In this scenario we have our volatile redirector using IPTables to forward all DNS traffic using the rule example described earlier in this section. Next, we create an SSH reverse port forward tunnel from our internal c2 server to our main redirector. This will forward any traffic the main redirector receives on port 6667 to the internal c2 server on port 6667. Now, start socat on our team server to fork any of the incoming TCP traffic on port 6667 to UDP port 53 which, is what our DNS c2 needs to listen on. Finally, we similarly setup a socat instance on the main redirector to redirect any incoming UDP port 53 traffic into our SSH tunnel on port 6667.

HTTP(S)

Note: When using C2 redirectors, a foreign listener should be configured on your post-exploitation framework to send staging traffic through the redirector domain. This will cause the compromised host to stage through the redirector like the C2 traffic itself.

socat vs mod_rewrite

socat provides a ‘dumb pipe’ redirection. Any request socat receives on the specified source interface/port is redirected to the destination IP/port. There is no filtering or conditional redirecting.

Apache mod_rewrite, on the other hand, provides several methods to strengthen your phishing and increase the resilience of your testing infrastructure. mod_rewrite can perform conditional redirection based on request attributes, such as URI, user agent, query string, operating system, and IP. Apache mod_rewrite uses htaccess files to configure rulesets for how Apache should handle each incoming request. Using these rules, you could, for instance, redirect requests to your server with the default wget user agent to a legitimate page on your target's website.

In short, if your redirector needs to perform conditional redirection or advanced filtering, use Apache mod_rewrite. Otherwise, socat redirection with optional iptables filtering will suffice.

socat for HTTP

socat can be used to redirect any incoming TCP packets on a specified port to our team server.

The basic syntax to redirect TCP port 80 on localhost to port 80 on another host is:

socat TCP4-LISTEN:80,fork TCP4:<REMOTE-HOST-IP-ADDRESS>:80

If your redirector is configured with more than one network interface, socat can be bound to a specific interface, by IP address, with the following syntax:

socat TCP4-LISTEN:80,bind=10.0.0.2,fork TCP4:1.2.3.4:80

In this example, 10.0.0.2 is one of the redirector's local IP addresses and 1.2.3.4 is the remote team server's IP address.

iptables for HTTP

In addition to socat, iptables can perform 'dumb pipe' redirection via NAT. To forward the redirector's local port 80 to a remote host, use the following syntax:

iptables -I INPUT -p tcp -m tcp --dport 80 -j ACCEPT

iptables -t nat -A PREROUTING -p tcp --dport 80 -j DNAT --to-destination <REMOTE-HOST-IP-ADDRESS>:80

iptables -t nat -A POSTROUTING -j MASQUERADE

iptables -I FORWARD -j ACCEPT

iptables -P FORWARD ACCEPT

sysctl net.ipv4.ip_forward=1

SSH for HTTP

We have previously covered using SSH for DNS tunnels. SSH works as a solid, and robust means to break through NAT and obtain a way for the implant to connect to a redirector and into your server environment. Before setting up an SSH redirector, you must add the following lines to /etc/ssh/sshd_config:

# Allow the SSH client to specify which hosts may connect

GatewayPorts yes



# Allow both local and remote port forwards

AllowTcpForwarding yes

To forward the redirector's local port 80 to your internal teamsrver, use the following syntax on the internal server:

tmux new -S redir80

ssh <redirector> -R *:80:localhost:80

Ctrl+B, D

You can also forward more than one port, for example if you want 443 and 80 to be open all at once:

tmux new -S redir80443

ssh <redirector> -R *:80:localhost:80 -R *:443:localhost:443

Ctrl+B, D

Payloads and Web Redirection

When serving payload and web resources, we want to minimize the ability for incident responders to review files and increase the chances of successfully executing the payload, whether to establish C2 or gather intelligence.

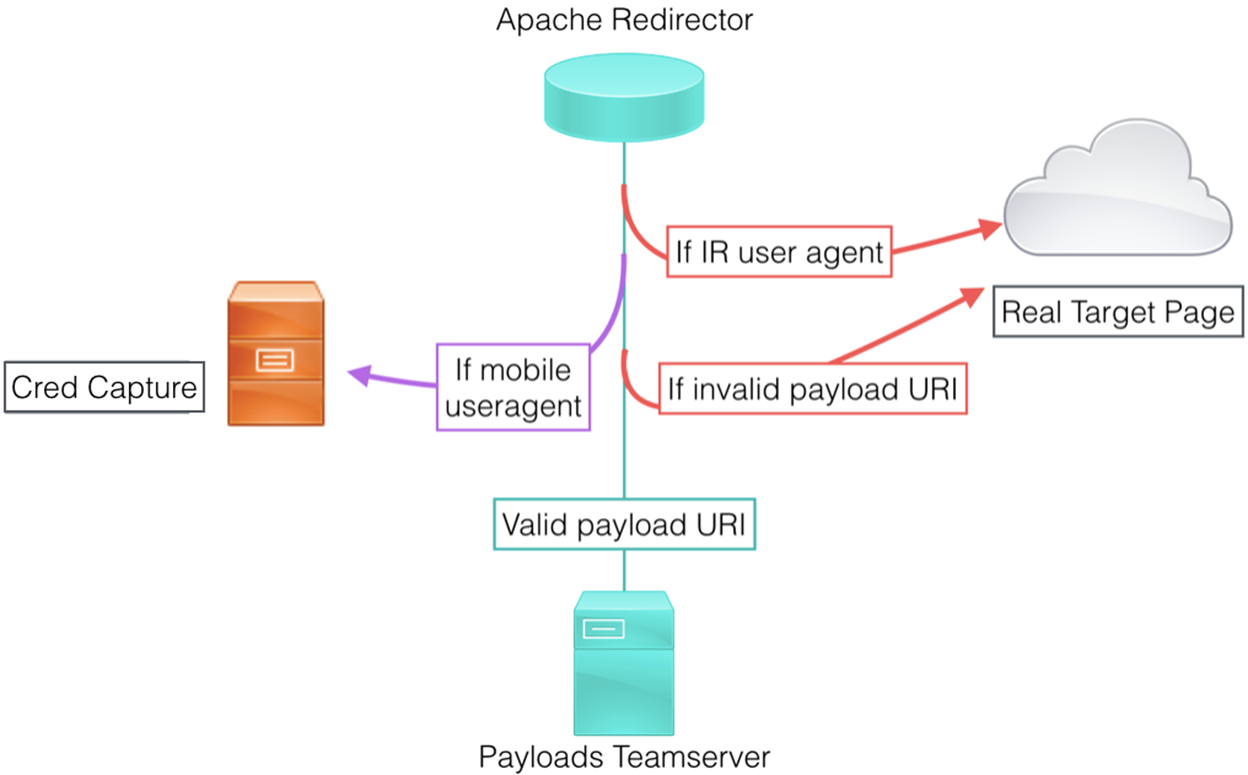

Sample Apache Redirector Setup

Apache Mod_Rewrite usage and examples by Jeff Dimmock:

Other Apache mod_rewrite usage and examples:

To automatically set up Apache Mod_Rewrite on a redirector server, check out Julain Catrambone's (@n0pe_sled) blog post Mod_Rewrite Automatic Setup and the accompanying tool.





C2 Redirection

The intention behind redirecting C2 traffic is twofold: obscure the backend team server and appear to be a legitimate website if browsed to by an incident responder. Through the use of Apache mod_rewrite and customized C2 profiles or other proxying (such as with Flask), we can reliably filter the real C2 traffic from investigative traffic.

C2 Redirection with HTTPS

Building on "C2 Redirection" above, another method is to have your redirecting server use Apache's SSL Proxy Engine to accept inbound SSL requests, and proxy those to requests to a reverse-HTTPS listener. Encryption is used at all stages, and you can rotate SSL certificates on your redirector as needed.

To make this work with your mod_rewrite rules, you need to place your rules in "/etc/apache2/sites-available/000-default-le-ssl.conf" assuming you've used Lets Encrypt (aka CertBot) to install your certificate. Also, to enable the SSL ProxyPass engine, you'll need the following lines in that same config file:

# Enable the Proxy Engine

SSLProxyEngine On



# Tell the Proxy Engine where to forward your requests

ProxyPass / https://DESTINATION_C2_URL:443/

ProxyPassReverse / https://DESTINATION_C2_URL:443/



# Disable Cert checking, useful if you're using a self-signed cert

SSLProxyCheckPeerCN off

SSLProxyCheckPeerName off

SSLProxyCheckPeerExpire off

Other Apache mod_rewrite Resources

Modifying C2 Traffic

Cobalt Strike

Cobalt Strike modifies its traffic with Malleable C2 profiles. Profiles provide highly customizable options for modifying how your server’s C2 traffic will look on the wire. Malleable C2 profiles can be used to strengthen incident response evasion, impersonate known adversaries, or masquerade as legitimate internal applications used by the target.

As you begin creating or modifying Malleable C2 profiles, it's important to keep data size limits for the Beacon info placement. For example, configuring the profile to send large amounts of data in a URL parameter will require many requests. For more information about this, check out Raphael Mudge's blog post Beware of Slow Downloads.

If you encounter issues with your Malleable C2 profile and notice the teamserver console outputting errors, refer to Raphael Mudge's blog post Broken Promises and Malleable C2 Profiles for troubleshooting tips.

Empire

Empire uses Communication Profiles, which provide customization options for the GET request URIs, user agent, and headers. The profile consists of each element, separated by the pipe character, and set with the set DefaultProfile option in the listeners context menu.

Here is a sample default profile:

"/CWoNaJLBo/VTNeWw11212/|Mozilla/4.0 (compatible; MSIE 6.0;Windows NT 5.1)|Accept:image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, */*|Accept-Language:en-en"

Alternatively, the DefaultProfile value can be set by modifying the file /setup/setup_database.py before Empire’s initial setup. This will change the default Communication Profile that Empire will use.

In addition to the Communication Profile, consider customizing the Empire server's staging URIs, server headers, and defaut webpage content by following the steps presented in Joe Vest's (@joevest) post Empire - Modifying Server C2 Indicators.

Third-Party C2 Channels

Leveraging trusted, legitimate web services for C2 can provide a valuable leg-up over using domains and infrastructure you've configured yourself. Configuration time and complexity varies based on the technique and service being used. A popular example of leveraging third-party services for C2 redirection is Domain Fronting.

Domain Fronting

Domain Fronting is a technique used by censorship evasion services and apps to route traffic through legitimate and highly-trusted domains. Popular services that support Domain Fronting include Google App Engine, Amazon CloudFront, and Microsoft Azure. It's important to note that many providers, like Google and Amazon have implemented mitigations against Domain Fronting, so some linked resources or information provided in this wiki may be outdated by the time you try to use it.

In a nutshell, traffic uses the DNS and SNI name of the trusted service provider, Google is used in the example below. When the traffic is received by the Edge Server (ex: located at gmail.com), the packet is forwarded to the Origin Server (ex: phish.appspot.com) specified in the packet’s Host header. Depending on the service provider, the Origin Server will either directly forward traffic to a specified domain, which we’ll point to our team server, or a proxy app will be required to perform the final hop forwarding.

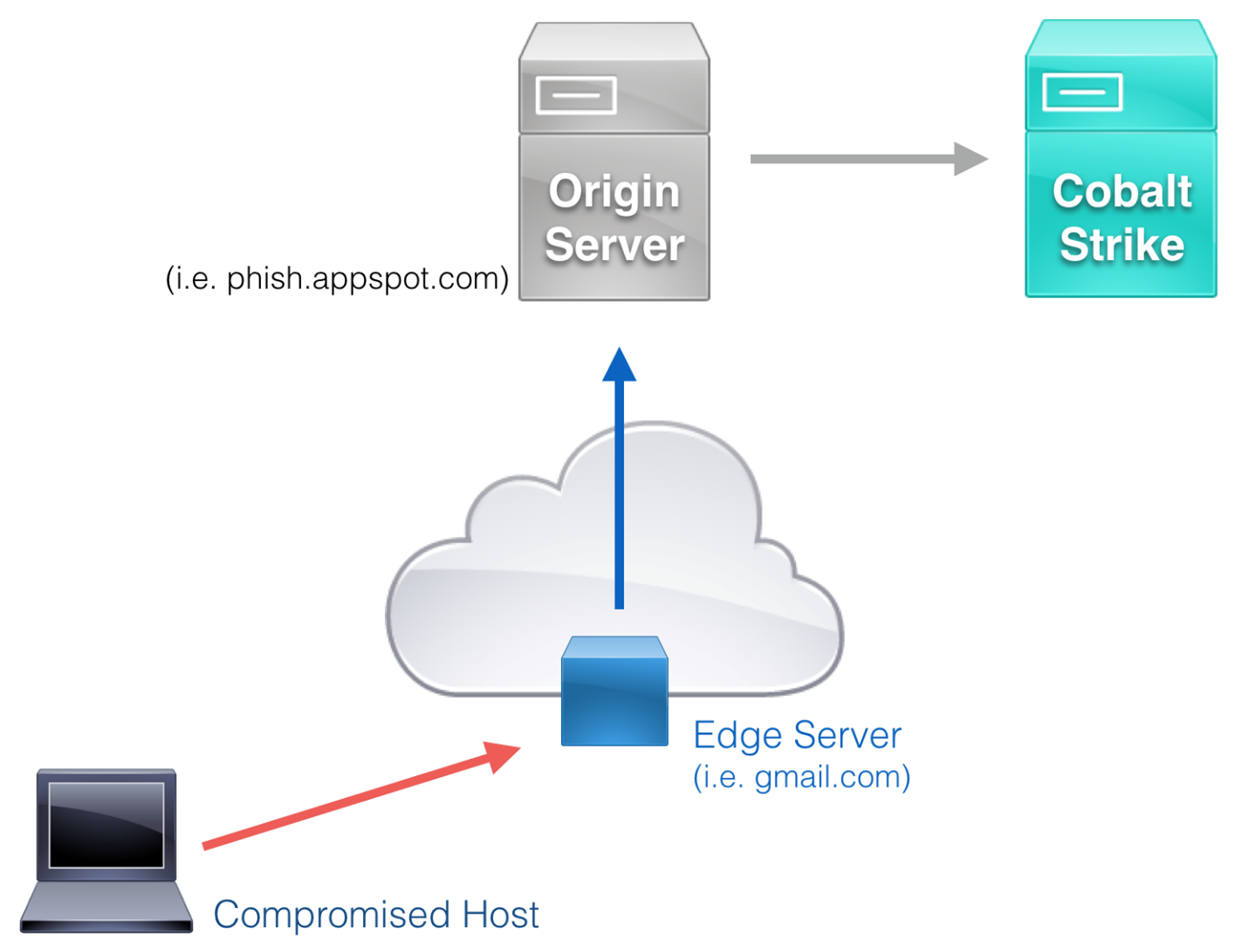

Domain Fronting Overview

For more detailed information about how Domain Fronting works, see the whitepaper Blocking-resistant communication through domain fronting and the TOR Project’s meek documentation

In addition to the standard frontable domains, such as any google.com domain, it's possible to leverage other legitimate domains for fronting.

For more information about hunting frontable domains, check out:

Further Resources on Domain Fronting

PaaS Redirectors

Many PaaS and SaaS providers provide a static subdomain or URL for use with a provisioned instance. If the associated domain is generally highly trusted, the instances could provide extra trust to your C2 infrastructure over a purchased domain and VPS.

To set the redirection up, you will need to identify a service that issues a static subdomain or URL as part of an instance. Then, either the instance will need to be configured with network or application-based redirection. The instance will act as a proxy, similar to the other redirectors discussed on this wiki.

Another interesting technique that merits further research is the use of overly-permissive Amazon S3 buckets for C2. Check out the post S3 Buckets for Good and Evil by Andrew Luke (@Sw4mp_f0x) for more details on how S3 buckets could be used for C2. This technique could be combined with the third-party C2 capabilities of Empire to use the target's legitimate S3 buckets against them.

For another example of using PaaS for C2, check out Databases and Clouds: SQL Server as a C2 by Scott Sutherland (@_nullbind).

Other Third-Party C2

Other third-party services have been used in the wild for C2 in the past. Leveraging third-party websites that allow for the rapid posting or modification of user-generated content can help you evade reputation-based controls, especially if the third-party site is generally trusted.

Check out these resources for other third-party C2 options:

Obscuring Infrastructure

Attack infrastructure is often easy to identify, appearing like a shell of a legitimate server. We will need to take additional steps with our infrastructure to increase the likelihood of blending in with real servers amongst either the target organization or services the target may conceivably use.

Redirectors can help blend in by redirecting invalid URIs, expiring phishing payload links, or blocking common incident responder techniques; however, attention should also be paid to the underlying host and its indicators.

For example, in the post Fall of an Empire, John Menerick (@Lord_SQL) covers methods to detect Empire servers on the internet.

To combat these and similar indicators, it's a good idea to modify C2 traffic patterns, modify server landing pages, restrict open ports, and modify default response headers.

For more details about how to do these and other tactics for multiple attack frameworks, check out these posts:

Securing Infrastructure

Attack infrastructure can be attacked just the same as any other internet-connected host, and it should be considered HIGHLY sensitive due to the data in use and connections into target environments.

In 2016, remote code execution vulnerabilities were disclosed on the most common attack tools:

iptables should be used to filter unwanted traffic and restrict traffic between required infrastructure elements. For example, if a Cobalt Strike team server will only serve assets to an Apache redirector, iptables rules should only allow port 80 from the redirector’s source IP. This is especially important for any management interfaces, such as SSH or Cobalt Strike’s default port 50050. Also consider blocking non-target country IPs. As an alternative, consider using hypervisor firewalls provided by your VPS providers. For example, Digital Ocean offers Cloud Firewalls that can protect one or multiple droplets.

chattr can be used on team servers to prevent cron directories from being modified. Using chattr, you can restrict any user, including root, from modifying a file until the chattr attribute is removed.

SSH should be limited to public-key authentication only and configured to use limited-rights users for initial login. For added security, consider adding multi-factor authentication to SSH.

Update! No securing list is complete without a reminder to regularly update systems and apply hot-fixes as needed to remediate vulnerabilities.

Of course, this list is not exhaustive of what you can do to secure a team server. Follow common hardening practices on all infrastructure:

Specific Hardening Resources

There are a number of resources available online discussing the secure setup and design of infrastructures. Not every design consideration will be appropriate for every attack infrastructure, but it's useful to know what options are available and what other testers are doing.

Here are some of those resoources:

Automating Deployments

The topics covered in this wiki strengthen attack infrastrctures, but generally require a good deal of time to design and implement. Automation can be used to greatly reduce deployment times, allowing you to deploy more complex setups in less time.

Check out these resources about attack infrastructure automation:

General Tips
